Exterior Accessories / obr-ps1-obd

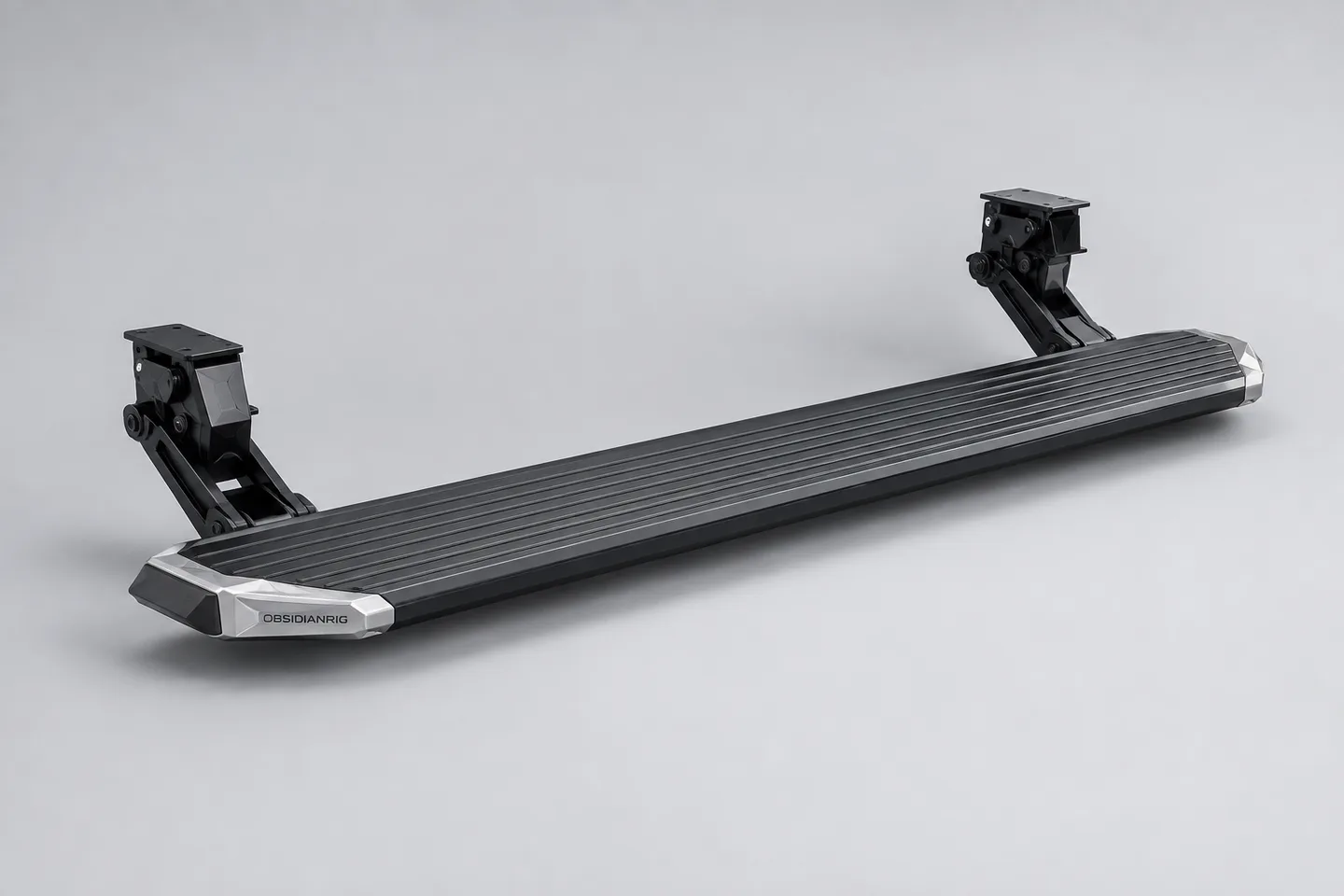

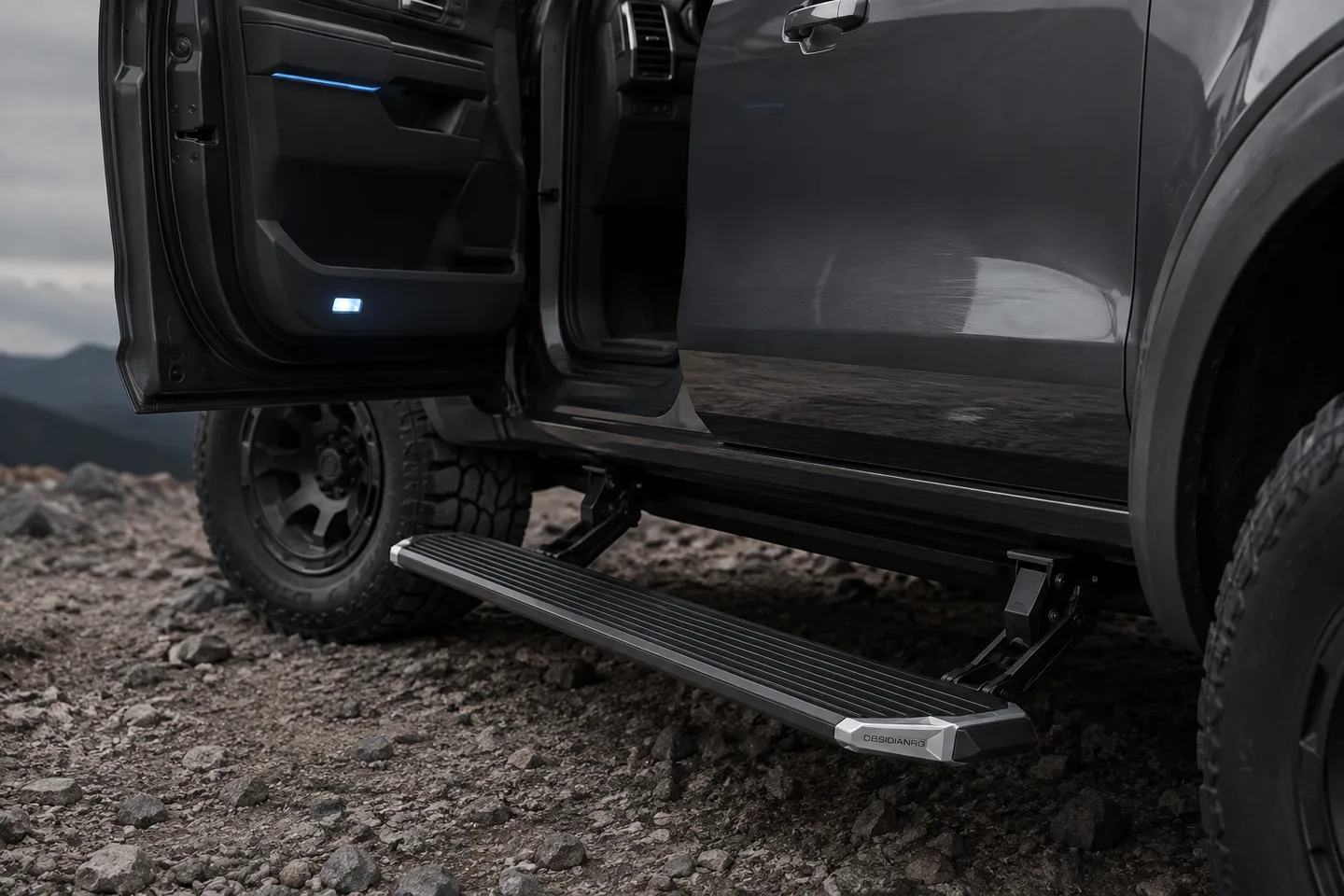

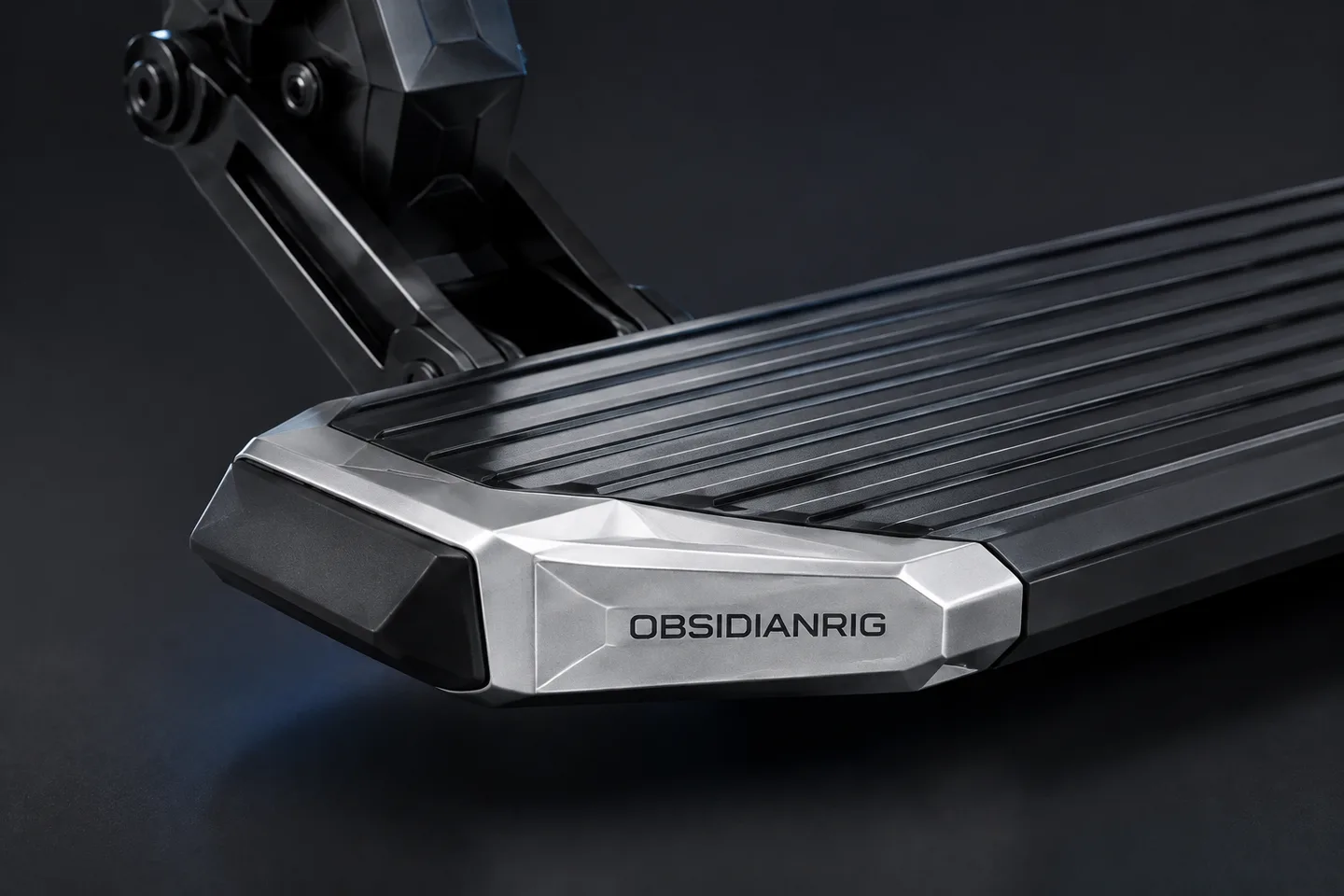

OBR-PS1 Electric Side Steps (plug-and-play)
Dual motor · 300 kg/side · OBD plug-and-play · From $520 / pr
Dual motor · 300 kg/side · OBD plug-and-play
2 vehicle platforms, listed below.
Confirm pricing, availability and fitment for your exact configuration.
Electrical & installation
| Voltage | 12 V DC |
|---|---|
| Standby current | < 5 mA |
| Motor | 2 x 60 W |
| Load capacity | 300 kg per side |
| Ingress protection | IP6K9K (ISO 20653) |
| Control | Door signal · Interior override switch · Remote |
| Anti-pinch | Yes — reverses on obstruction |
| Installation | Plug and play — uses the factory loom, no cutting |
If the module fails, can I still open it?
Request the manual-release procedure for your exact kit and vehicle. Confirm how the original door or tailgate operates if power or the module is unavailable.
Will it drain the battery?
Standby draw is < 5 mA. The module sleeps with the vehicle rather than holding the CAN bus awake.
Exact fitment
This part is vehicle-specific. Match every column below, not just the model name.
| Vehicle | Years | Generation | Body | Factory loom |
|---|---|---|---|---|
| Ford Bronco | 2021- | U725 | 4-door | Yes |
| Ford Bronco | 2021- | U725 | 2-door | Yes |
| Toyota Land Cruiser 300 | 2021- | J300 | Wagon · Higher grades with factory power tailgate | Yes |
2021- U725: Shorter step length than the 4-door. Not interchangeable.
2021- J300: ⛔ Requires the factory power tailgate loom. Base grades have no loom and are not compatible with the plug-and-play version.
